Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable

Name: Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable
Brand: Jiqian
Price: 1 USD

China Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable factory

Brand Name : Jiqian

Model Number : GYTA53/GYTS53

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou,China

MOQ : 1km

Payment Terms : L/C, T/T, Western Union,Alipay

Delivery Time : 5-7days,it depends on order quantity

Packaging Details : Wooden drum

Number of fiber : 4-576

Sheath : PE/LSZH,Black colour

Suitable Temperature : -40℃ +70℃

Fiber type : Single mode G652D

Manufacturer : Yes

Armored fiber cable : Yes,double sheath double armor

OEM : Available

Contact Now

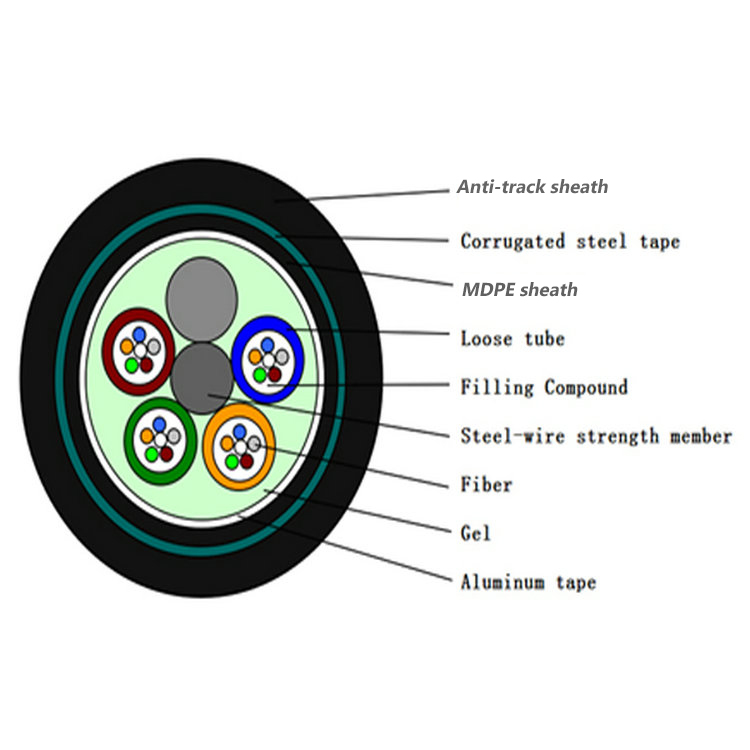

fUnderground Double Sheath Double Armour Strong cable GYTA53 24 48 96 144 Cores

1.The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.

2.A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.

5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable

^Features

^{Loose tube gel-filled construction for superiorfiber protection.}

^{Double jacket single armored(GYTY53) and Double jacket double armored}

^{(GYTA53) for rodent pr.otection and direct burial.}

^{UV and moisture-resistant design}

^Applications

^{Directburied, DuctorUnderground conduits.}

^Backbone.

Technical data

Fiber count	48 cores G652D
Cable diameter	12.2±0.2mm
Loose tube	4,each tube contain 12 cores
Inner sheath	PE	0.9MM
Outer sheath	PE	1.8±0.2MM
Tension(Long Term)	N	1500
Tension(Short Term)	N	3200
Crush(Long Term)	N/10cm	1500
Crush(Short Term)	N/10cm	4200
Operating Temperature	℃	-40～+70

Cable testing:

Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable

Company profile:

1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world

Exhibition:

FAQ

Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you provide OEM or ODM

A: Yes

Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

For more information please contact me
Factory Supply GYTA53 Outdoor Direct Buried Underground 36 48 96 Core Fiber Optical Cable

Product Tags:

GYTA53 Underground Fiber Optical Cable

96 Core Fiber Optical Cable
