GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core

Name: GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 412 Core
Brand: Jiqian/Customize
Price: 1 USD

China GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core factory

Brand Name : Jiqian/Customize

Model Number : GJFJV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : CHINA

MOQ : 1000m

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per 2 day

Delivery Time : 2-4day

Packaging Details : wooden drum

Fiber type : OM3

Oem : Available

Operating temperature : -20~70°C

central strength member : Aramid Yarn/Kevlar Yarn

Material : PVC/LSZH

Fiber count : 12core

Packing : Wooden drum

Type : EFONA005 Ⅰ

Core Number : 2core

Bending Radius : 10 times cable diameter

Sheath Material : LSZH or PVC

Length : Custom Length

Service : OEM ODM Accept

Flame Retardant Grade : LSZH

Fiber Count : 2-144

Strength Material : Aramid yarn

Tight Buffer : 0.9mm

Feature : indoor installation,floor installation

Stucture : 2.0/3.0mm

Messenger : Steel Wire

Cores : 12 to 48 cores

Contact Now

Indoor 12-Core Multimode Tight Buffer Fiber Optic Cable (GJFJH/GJFJV)

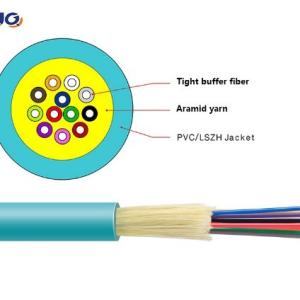

This GJFJV indoor distribution cable features multiple 900μm (or 600μm) flame-retardant tight-buffered multimode fibers as the transmission medium. Each fiber is reinforced with aramid yarn for strength and encased in a flame-retardant PVC or LSZH jacket (low smoke, zero halogen).

Manufactured using high-quality optical fiber and precise production equipment, the cable ensures reliable performance for indoor communication applications.

GJFJH GJFJV Indoor Distribution Tight Buffer Fiber Optic Cable Kevlar Yarn 4/12 Core

Features

Strong mechanical and environmental performance
Complies with flame-retardant standards
Durable structure meets all mechanical requirements
Soft, flexible, easy to splice, and supports high data transmission capacity

Technical Data

No. of cable		8	12	24	36	48
Fiber Model		OM3
Tight lines	Material	PVC/LSZH
	Thickness(±0.03)mm	0.32
	Diameter(±0.06)mm	0.9
Center Strength Member	Material	FRP
Center Strength Member	Diameter(±0.1)mm	—	—	—	0.5	0.5
Strength Member	Material	Aramid Yarn
Inner Sheath	Material	PVC/LSZH
	Diameter(±0.1)mm	—	—	—	0.8	0.8
	Colour	Aqua
Outer Sheath	Material	PVC
	Thickness(±0.1)mm	0.9	1.0	1.0	1.5	1.5
	Colour	Aqua
Cable Diameter(±0.2)mm		5.8	6.2	8.5	15.1	15.1
Cable Wetght(±5)kg/km		31	41	60	238	235

Attenuation	850nm	dB/km	≤2.5
	1300nm		≤0.7
Bandwidth	850nm	MHz.km	≥3500
	1300nm		≥500
Allowable Tensile Strength	Short Term	N	660	660	660	1320	1320
	Long Term		200	200	200	660	660
Allowable Crush Resistance	Short Term	N/100mm	1000	1000	1000	1500	1500
	Long Term		200	200	200	300	300
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range (℃)	Installation		-20~+60
	Transport&Storage		-40~+70
	Operation		-40~+70

COMPANY PROFILE

Guangzhou Jiqian Fiber Optical Cable Co., Ltd. is a high-tech joint-stock enterprise located in the Mingying West 2nd Road Industrial Zone, Xintang Town, Guangzhou, Guangdong. We integrate R&D, production, and sales, specializing in manufacturing fiber optic cables with specifications ranging from 2 to 288 cores.

FAQ

1. Are you a manufacturer?
Yes, we are a factory based in Guangzhou, China. You're welcome to visit us.

2. What is the minimum order quantity?
1 km. Trial orders for new projects are supported.

3. Can I get a sample?
Yes, we offer free samples; you only cover the shipping cost.

4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.

5. What is the delivery time?
Normally 3–7 working days, depending on the order quantity.

6. Do you offer customization and logo printing?
Yes, we provide OEM and ODM services. Feel free to contact us with your requirements.
