GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable

  • 1
  • 2
  • 3

Brand Name : JQ/OEM/Customize

Model Number : GYTS

Certification : CE RoHS ISO:9001

Place of Origin : Guangdong, China

MOQ : 1 Kilometer

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8000 kilometers per month

Delivery Time : 2-5days

Packaging Details : Wooden Drum

Type : Outdoor Fiber Optic Cable

Number of Conductors : ≥ 10

Fiber type : G652D Single mode or as your request

Length : As required

Color : Customized

Cable Structure : Multi-Loose Tube Steel Tape armor

Central strength member : Steel wire

Armoured : Steel tape

Package : Wooden Drum/Customized

Oem : Available

Application : Aerial, in duct

Strengthen Core : FRP

Fiber Port : LC

Sheath Material : PE or LSZH

Outer Sheath : PE or as your request

Warranty Time : 30Years

Packing : Wooden Drum

Jacket Material : PE

Spam : 100/200/300/400/500m

Innerjacket : PE

Uv Resistance : Yes

Laying Method : aerial and pipeline laying method

Armored : Double Armored

Construction : Stranded Loose Tube

Overall Diameter : 11.4mm~13.10mm

Factory : Yes

Contact Now

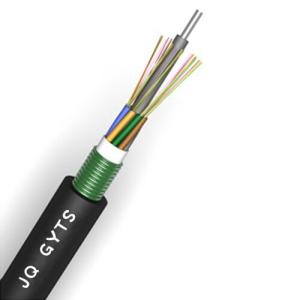

GYTS FIBER OPTIC CABLE
MODEL: GYTS-24B1
Fiber: SM G652D
Armoured: PSP Steel Tape
Jacket Diameter: 10.50mm
Jacket Material: HDPE
Cable Length: 3Km/Drum

Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable

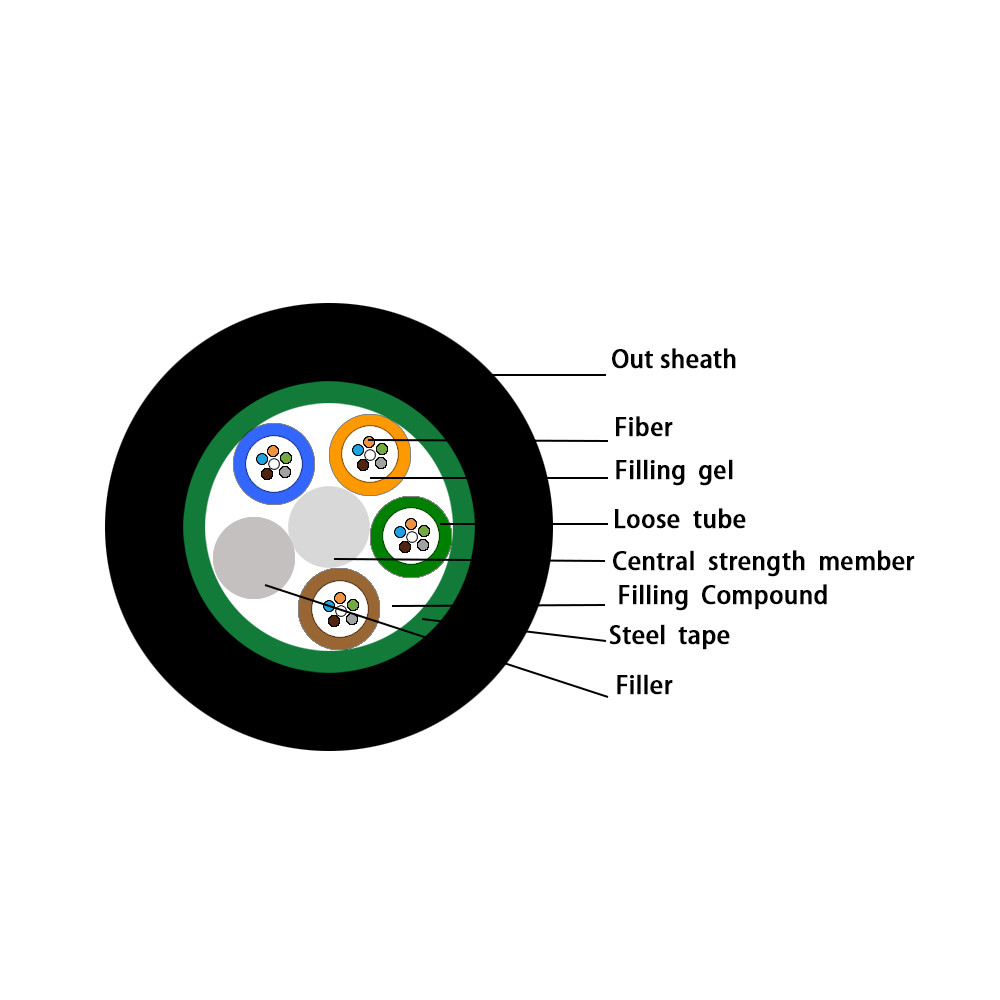

The GYTS Fiber Optical Cable consists of optical fibers placed in a central loose tube, with fillers stranded around a metallic central strength member. The cable is then twisted using an SZ pattern into a compact form. A longitudinally applied PSP (Polyester Strength Member) coating provides protection, and the entire cable is finished with a PE sheath. The loose tube’s core is filled with a water-resistant filling compound to prevent moisture damage.

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable

Characteristics:

Here's a more concise version of your text:

  • The cable offers strong mechanical properties and temperature resistance.

  • The loose tube material has excellent hydrolysis resistance and high strength.

  • Special grease fills the tube, protecting the fibers.

  • The cable features a unique design to prevent sheath retraction.

  • It has good pressure resistance and flexibility.

  • The jacket is designed for superior performance.

  • Waterproofing measures include:

    • A central reinforcement core.

    • A special waterproof compound in the loose tube.

    • Full core filling.

    • Double-sided coated steel strip (PSP) for enhanced moisture resistance.

Application:

GYTS Fiber Optic Cable 48 Core HDPE Jacket Armored Direct Burial Duct Optical Cable

Specification:

item value
Model Number GYTS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Central strength member steel wire
Loose tube Jelly filled
Loose Tube Material PBT
Armoured Steel tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Steel Tape armor
Color Black or as your need
Package Plywood Reel/customized
Installation aerial, in duct
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL
Structure and Technical Specifications:
Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
(mm) (kg/km) fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300
