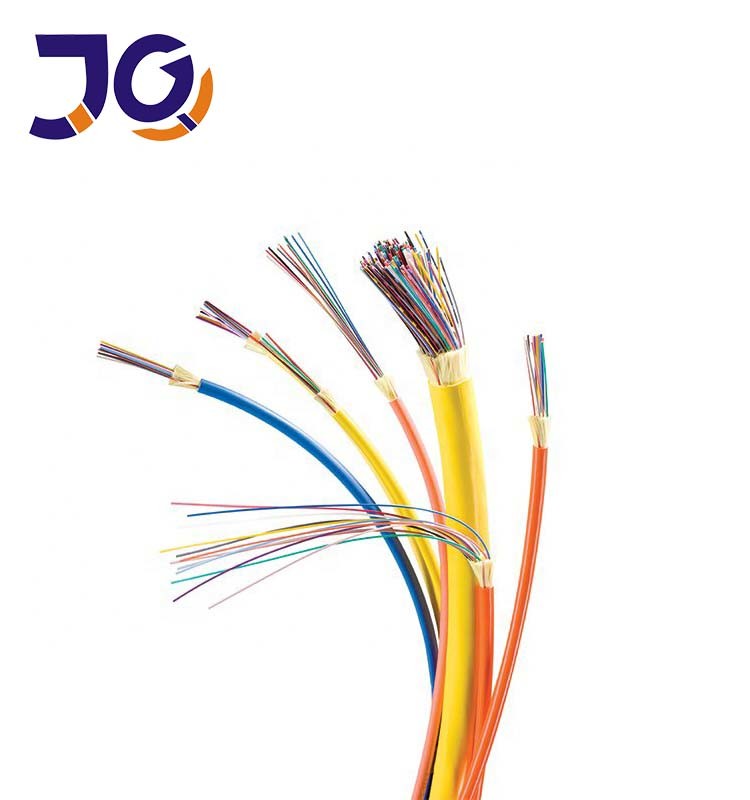

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

Product Categories
Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

  • 1
  • 2
  • 3

Brand Name : Jiqian/Customize

Model Number : GJFJV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou China

MOQ : 1KM

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 60000KM/month

Delivery Time : 5-8 work days

Packaging Details : Wooden Drum

Number of Fiber : 1/4/12

Sheath/Jacket : LSZH/PVC

MOQ : 1KM

Application : Telecommunication

Port : Guangzhou/Shenzhen

Manufacturer : YES

Inspection : Dimension, color, OTDR data

Standards : IEC 60794-2-10/ TIA/EIA-568-C.3

Fiber Core : 2Cores

Crush Resistance : 1000N/100mm

Central Strength Member : Aramid Yarn

Sheath : LSZH/PVC

Jacket Color : Aqua/Yellow/Orange

Reinforcement : FRP/Kavlar Yarn

Diameter : 2.2(outer/inner)

Core : 4 cores

Characteristics : Anti Corrosion, Anti Water

Indoor Or Outdoor : Indoor Fiber Optic Cable

Temperature : -20--60ºC

Cable Type : Single-mode/Multi Mode/MM/Duplex

Applications : Indoor/Outdoor application

Contact Now

12 Core Multimode Fiber Optic Cable – GJFJV Tight Buffer (Indoor Use)

Product Description:

This multi-purpose indoor distribution cable features multiple 900μm (or 600μm) flame-retardant tight-buffered multimode fibers as the transmission medium. Each fiber is sheathed with a precision-applied buffer layer, reinforced with aramid yarn for strength, and jacketed in flame-retardant PVC or LSZH material (low smoke, zero halogen).

High-quality optical fiber, advanced manufacturing equipment, and precise tooling ensure excellent mechanical and transmission performance.

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

Characteristics

  • Excellent mechanical and environmental performance
  • Flame-retardant properties comply with industry standards
  • Durable jacket meets all standard mechanical requirements
  • Soft, flexible, and easy to install and splice
  • Supports high-capacity data transmission
  • Adaptable to diverse market and customer needs

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight

 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

Product Detail

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

0.9 Indoor Tight Buffer Fiber Optic Cable Kevlar Yarn LSZH Jacket GJFJV G657A2 8 Core

Application

  1. Suitable for pigtails and patch cords

  2. Ideal for equipment interconnections

  3. Used in indoor/outdoor cabling, especially as distribution cables

  4. Applied in optical rooms and distribution frames for network connections

FAQ

1. Why choose us?

  • Professional manufacturer with low MOQ and free samples

  • Reliable quality with fast response

  • Competitive pricing to maximize customer value

2. Do you accept OEM/ODM?
Yes, we welcome custom designs and specifications.

3. Can you print our logo?
Absolutely — we can print your logo on products and packaging.

4. What shipping methods do you offer?
We support all major methods: express, sea, land, and air freight.

5. What payment methods are accepted?
We accept LC, T/T, Western Union, Alipay, and more.

6. What’s your delivery time?
Normally 3–7 working days, depending on the order size. We’ll ship promptly after payment.
