Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable

  • 1
  • 2
  • 3

Brand Name : jiqian/haiso/Customize

Model Number : ADSS 12 24 48 96core

Certification : ISO9001/CE

Place of Origin : CHINA

MOQ : 1km

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 100km per Month

Delivery Time : 2-4days

Packaging Details : wooden drum/customized

Fiber type : G652D/G657A1

Application : Aerial/duct/overhead

Number of conductors : 12 48 96 core

Structure : Stranded loose tube

Operating temperature : -40 ~ +60 C

central strength member : FRP Glass Yarn strength member

Span : 100,120,150m

Packing : 2-4km/wooden drum

Sheath Material : Hdpe

Item No : ADSS-SJ-12B1.3

Hs Code : 854470000

Inner Sheath Material : PE

Temperature : -40~+70°C

Fiber Core : 2-288 Core

Package : 3km/4km/5km Per Drum

Sheath : PE

Color Of Jacket : Black

Allowed Tensile Strength : >10000N

Strength Number : Fiber rainforce plastics

Cettification : ISO 9001

Contact Now

Aerial Non-metallic Span 50m 12 24 48 core ADSS fiber optic cable

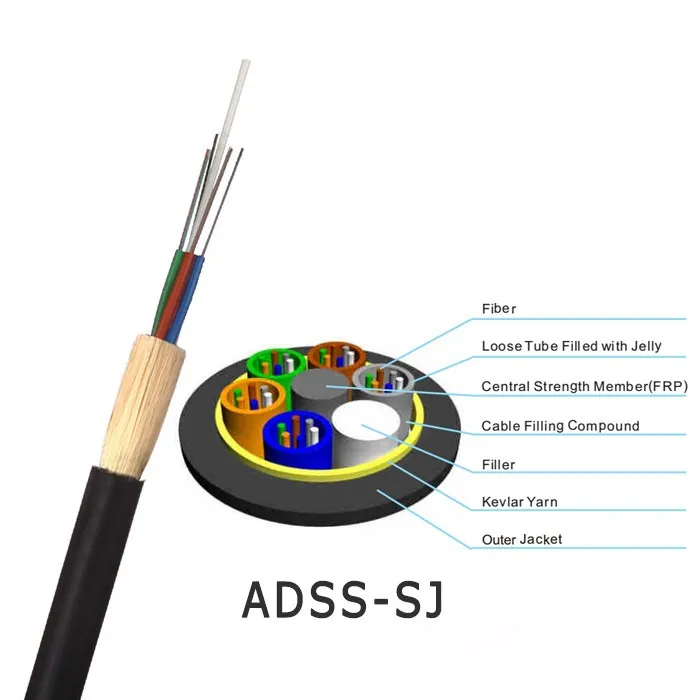

The ADSS cable features loose tube stranded fibers, each with a 250μm diameter, housed in a tube made of high-modulus plastic. The tubes are filled with a water-resistant compound and stranded around a non-metallic Fiber Reinforced Plastic (FRP) central strength member, forming a compact and circular core. Once the core is filled with compound, a thin PE (polyethylene) inner sheath is applied. Strength is further enhanced by a layer of aramid yarns, and the cable is completed with an outer sheath made of PE or anti-tracking (AT) material.
Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable
Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable

Applications

1 .Suitable for network in high electromagnetic interfering places.

Suitable for aerial.

2.Long distance and local area network communication.

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

 Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

 Suitable Span
(NESC Standard,m)
PE Jacket AT Jacket A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510

Single jacket :

Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical CableDouble Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical CableDouble Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable

Packing List :

Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers
Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable
Double Jacket ADSS Aerial Fiber Optic Cable All Dielectric Self Supporting Optical Cable

FAQ:

  1. Are you the manufacturer?

    Yes, we are a factory based in Guangzhou, China. You're welcome to visit!

  2. What is the minimum order quantity?

    1 KM. We support new projects, and trial orders are welcome.

  3. Can I get a sample?

    Yes, we provide free samples; you just need to cover the shipping cost.

  4. What payment methods do you accept?

    We accept L/C, T/T, Western Union, and PayPal.

  5. What is the delivery time?

    Usually 3-7 working days, depending on the order quantity.

  6. Do you offer customized products and logos?

    Yes, we provide OEM & ODM services. Feel free to contact us for details.

7.Which brand of fiber do you use?

Corning,YOFC,Fiberhome,etc
