GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

  • 1
  • 2
  • 3

Brand Name : JQ/OEM/Customize

Model Number : GJFJV

Certification : ISO9001 ROHS CE-EMC FCC SDOC

Place of Origin : Guangzhou China

MOQ : 1km

Payment Terms : L/C, Western Union, T/T

Supply Ability : 4500KM Per Month

Delivery Time : 5-8 work days

Packaging Details : 2km/Wooden drum

Name : Indoor fiber optic cable

Outer sheath : PVC,PE,LSZH

Cable Type : tight buffer fiber with aramid yarn

Strength material : Aramid yarn

Color : Orange,Yellow,Blue

Core : 2-48fiber

fiber type : Multimode

Packing : Wooden Drum

Inner Jacket Color : Orange

Aramid Yarn : 12 Standard Yarn

Jaket : PVC

Standard : YD/T1258.3 IEC60794-2-10/11

Connection Structure : LC,Sc,FC,St

Oem : Available

Mode : Single mode or Multi mode

Jacket Color : Black, White

Material : PVC/LSZH,Aramid Yarn

Temperature : -20 to 60°C

Ferrule Type : Upc, APC

Connector Type : SC/LC/FC/ST/MPO

Fiber Counts : 1~12 Fibers

Bend Radius : 10 times cable diameter

Feature : Dielectric

Contact Now

ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV

Multi-purpose distribution cables use several 900μm flame-retardant tight-buffered fibers as the optical communication medium. These fibers are wrapped with aramid yarn for strength and then coated with a PVC or LSZH (Low Smoke, Zero Halogen, Flame-Retardant) sheath. The fibers are sheathed with an appropriate buffer material, and can be produced in diameters of 600μm or 900μm. The use of high-quality fibers, specialized production equipment, and precise tools ensures excellent product performance.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

Characteristics

The cable offers excellent mechanical and environmental properties. Its flame-retardant characteristics meet relevant standards, and the jacket's mechanical properties also comply with industry requirements. It is soft, flexible, easy to install and splice, and supports high data transmission capacity. The design meets various market and client needs.

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHz-km

2200MHz-km

@1300nm

21000MHz-km

2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

Cable diameter

MPC-02 MPC-04 MPC-06 MPC-08 MPC-10 MPC-12
Cable Diameter(mm) 4.1±0.25 4.8±0.25 5.1±0.25 6.2±0.25 6.5±0.25 6.8±0.25
Cable Weight(kg/km) 12 20 24 29 32 35
Tight Buffer Fiber Diameter 900±50μm

Technical Parameters

Tight Buffer Indoor Fiber Optic Cale GJFJV
Cable
Count		 Outside
Diameter		 Tight
buffer
Diameter

Weight

 Minimum
allowable Tensile
Strength(N)

Minimum allowable
Crush Load

(N/100mm)

Minimum

Bending
Radius (MM)

 Storage
temperature
(MM) (MM) (KG) short term long term short term long term short term long term (°C)
2 3 0.9 15 600 200 1000 200 20D 10D -40+60

4

 5 0.9 22 600 200 1000 200 20D 10D -40+60
6 5 0.9 23 600 200 1000 200 20D 10D -40+60
8 5.5 0.9 28 600 200 1000 200 20D 10D -40+60
12 6 0.9 38 600 200 1000 200 20D 10D -40+60
16 7.2 0.9 42 600 200 1000 200 20D 10D -40+60
24 8.3 0.9 58 600 200 1000 200 20D 10D -40+60
48 10 0.9 96 600 200 1000 200 20D 10D -40+60

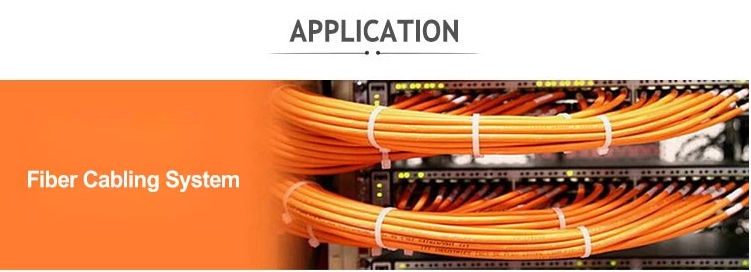

Application

  1. Used for pigtails and patch cords.

  2. Serves as interconnect lines for equipment.

  3. Suitable for both indoor and outdoor cabling, especially as a distribution cable.

  4. Used for optical connections in communication rooms and distribution frames.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

Product Detail

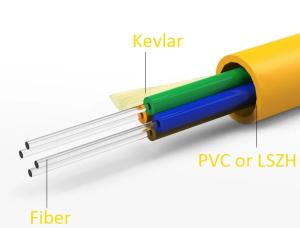

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH)jacket.

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

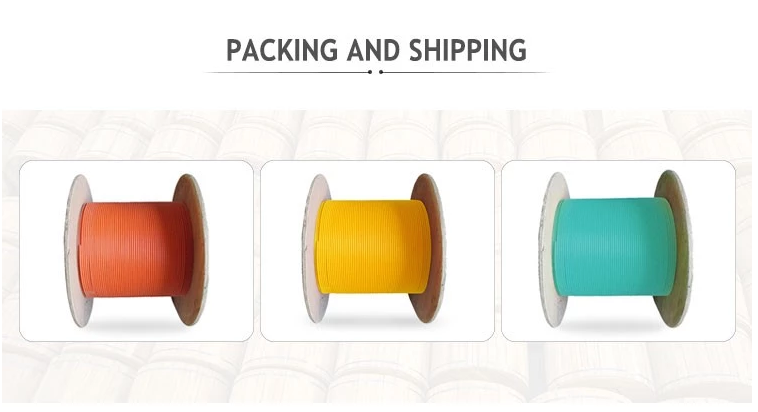

Packing

2km or customized length export wooden drum

GJFJV Indoor Fiber Optic Cable Tight Buffer Aramid Yarn LSZH Multi Mode 24 Core

FAQ

  1. Why choose us?

  • Professional Manufacturer: Low MOQ and free samples available.

  • Quality Assurance: Consistently high quality.

  • Customer Solutions: Fast response times.

  • Competitive Pricing: Cost-effective, bringing more benefits to customers.

  1. Do you accept OEM/ODM?
    Yes, we welcome OEM and ODM. Any ideas you have are welcome.

  2. Can you print our logo?
    Yes, we can print your logo on both the products and packaging.

  3. What is the shipping method?
    We offer various shipping options, including delivery, ocean transport, land transport, and air transport.

  4. What payment methods do you accept?
    We accept LC, T/T, Western Union, and Alipay.

  5. What is your delivery time?
    Typically 3-7 working days, depending on the order quantity. Rest assured, we’ll process your order as quickly as possible after payment.
