Brand Name : JQ/OEM
Model Number : MGXTSV
Certification : ISO9001, FCC, ROHS
Place of Origin : Guangdong, China
MOQ : 5 km
Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Delivery Time : 6 days
Packaging Details : iron drum
Color : Black /blue
Jacket metarial : LSZH (flame retardant)
Strength member : steel wire/FRP Glass yarn
Fiber count : 2-24 cores
Installation : pipe & underground
armored : steel tape/steel wires
Product name : Mining Optical Cable
cable drum : 5KM
fiber type : G652D G657A/OM3/OM4
Operating Temperature : -40°C to +70°C
Model Numer : GYTS/GYTA
Cable Weight : 100kg/km
Tube Color : Standard spectrum
Cable Use : Direct burial
Lifetime : 30 years
Rodent Protection : Yes
Tensile Strength : 1000N
Outer Diameter : 6/7/8mm
Fiber : Single Mode G. 652d
Customization : Available
Sheath Material : PE or customized
Cable Diamter : 9-16.5
Outer Jacket Color : Black
Outsheath : PE / LSZH / OFNP
Product Description
1.MGXTSV mining optical cables represent a specialized adaptation of fiber-optic technology tailored for underground mining environments. Designed primarily for coal extraction operations, these cables also serve critical communication functions in metallic/non-metallic ore mines (e.g., gold/iron mines), addressing the unique challenges of subterranean infrastructure
2.
These cables integrate baseline fiber-optic transmission capabilities with mandatory safety enhancements for mining applications:
3.
As standardized by China's State Administration of Coal Mine Safety (SACMS), MGXTSV specifications have become the de facto industry benchmark. This regulatory framework mandates uniform adoption across all mineral extraction sectors regardless of ore type, ensuring interoperability and simplified compliance in hybrid mining operations.
Features
▶
1. Features of MGTSV mining optical sables
2. It has good mechanical and temperature properties.
3. Loose casing material itself has goad water resistance and high strength.
4. The tube is filled with special oll paste, which provides key protection to the optical fibre.
5. Good pressure reustance
6. Double-eided plastic-coated steal strip (PSP) imprtines the maisture-reaintant ability of aptical cables and ham the function of anti-mouse
7. Biue flame-retardant PVC is need for mecondary sheathing, so that the oplical cable has a good flame netardant affect.
Applications:
▶
Utilize microtubule resources, particularly for backbone networks, access networks, and fiber-to-the-home (FTTH) solutions.
Cabling costs are affordable, making it ideal for upgrading urban infrastructure and building new networks.
The MGXTSV cable meets the MT386-1995 standard, testing the flame retardancy of cables used in coal mines.
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Parameters
Fiber Count | Diameter (MI) | Weight (KG/KMI) | Min.Bend Radius | Mlin.Tension (N) | Crush (N/100MMl) | |||
Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
2-12 | 9.0 | 115 |
10
| 20
| 1000 | 1500 | 1000 | 1500 |
16-24 | 10.5 | 135 | 1000 | 1500 | 1000 | 1500 |
Tips: all the data ablove is reference to our factory, pls contact Philip for more details ,
WA:008613422342788

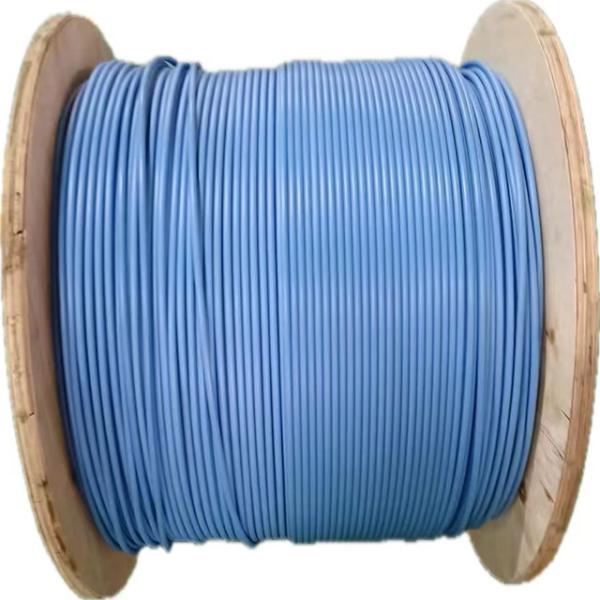

Detail product pictures
Mining application
factory shows
FAQ
Q1: How the warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: you can get free samples from my company.
Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.
![]() |
